Key Features of the FKR-710
- Fully Automatic Operation: Once powered on, the machine automatically adjusts the chin rest and its own position, measures both eyes (R/L), and prints/cuts the data paper.
- 3D Tracking & Motorized Joystick: Uses motorized movements for precise horizontal and vertical alignment.
- Advanced Screen: Features a 9-inch color touch screen that can rotate 360 degrees.
- IOL Function: Specialized capability to measure eyes that have undergone cataract surgery.
- Speed: Completes the entire detection process in approximately 20 seconds.
- Spherical Power (SPH): -20.00D to +20.00D (some models list -25.00D to +20.00D).
- Cylindrical Power (CYL): 0D to ±8.00D.
- Vertex Distance (VD): 0mm, 12.0mm, 13.75mm, 15.00mm.
- Minimum Pupil Diameter: 2.0 mm.
- Pupil Distance (PD): 45mm to 85mm.
- Corneal Curvature Radius: 5.5mm to 10mm.
- Eyeglass Prescription: Determining nearsightedness or farsightedness.
- Contact Lens Fitting: Measuring corneal curvature (keratometry).
- Eye Screenings: Rapid assessment for opticians, optometrists, and ophthalmologists.
Purpose in Clinical Practice

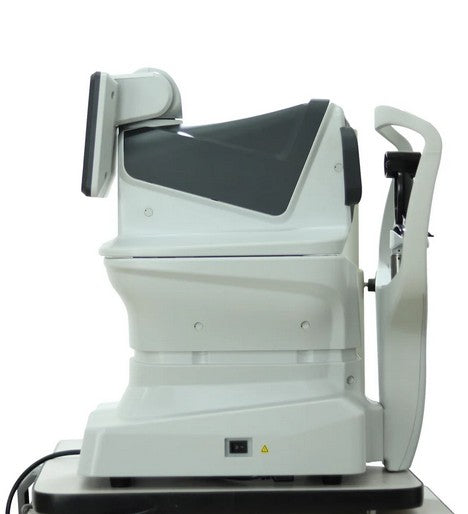

Professional Auto Kerato-Refractometer FKR-710
Clinical Precision Meets Automated Efficiency
The FKR-710 Auto Kerato-Refractometer represents a significant leap forward in optometric diagnostics, engineered specifically for high-volume clinical environments that demand speed without compromising accuracy. Designed to function as the cornerstone of the modern refraction room, this workstation combines objective refractive measurement with advanced keratometry in a single, streamlined unit. It utilizes a state-of-the-art optical path system that ensures reliable readings for myopia, hyperopia, and astigmatism. By integrating a specialized IOL (Intraocular Lens) mode, the device provides critical versatility, allowing practitioners to accurately measure patients who have previously undergone cataract surgery or have intraocular lens implants, a scenario where standard refractometers often fail.
Distinguishing itself from standard entry-level devices, the FKR-710 prioritizes patient comfort and safety through its fully motorized chin rest and head assembly. Unlike manual hand-wheel models that can feel antiquated and jerky, the motorized movement on this unit is silent and smooth, controlled directly via the touchscreen or intuitive button interface. This premium hardware feature not only enhances the perceived value of the examination for the patient but also ensures precise alignment of the visual axis. The system employs a "fogging" fixation target—typically a scenic image—which naturally relaxes the patient's accommodation to prevent instrumental myopia, ensuring the measurement data reflects the true refractive state of the eye.
Advanced Auto-Tracking and Rapid Fire Technology
Operational efficiency is paramount for the independent optician, and the FKR-710 delivers with its sophisticated 3D Auto-Tracking and Auto-Shot capabilities. Once the operator roughly aligns the device, the system automatically detects the pupil, fine-tunes the XYZ alignment, and instantly captures three consecutive measurements to verify consistency. This "One-Touch" workflow reduces the examination time to approximately 20 seconds for both eyes, significantly increasing patient throughput. The device reduces the physical strain on the operator, as the highly sensitive joystick and automated software handle the minute adjustments required for perfect focus and capture.
Intuitive Visualization and Data Management

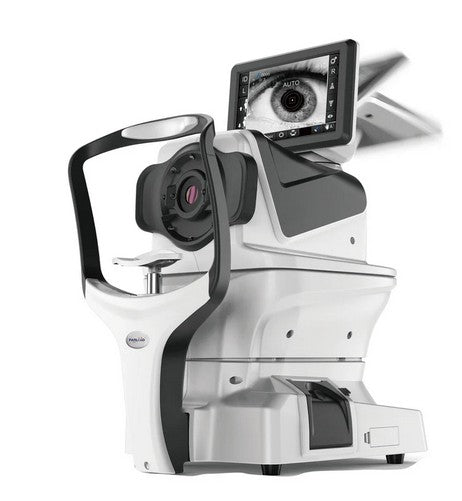

The device centers around a massive 9-inch high-resolution color touch screen that offers a 360-degree rotation capability, allowing the operator to control the unit from virtually any position—whether seated, standing, or assisting a patient from the side. This interface displays clear, high-contrast alignment markers and measurement data, ensuring no detail is missed during the screening. Furthermore, the built-in thermal printer provides immediate physical records with an auto-cut feature for a professional presentation. For integrated practices, the unit supports data output via RS-232 and Bluetooth, facilitating seamless connection to phoropters and electronic medical record (EMR) systems.
As a Class IIa medical device, the FKR-710 is fully compliant with the European Medical Device Regulation (MDR) standards, ensuring it meets the rigorous safety and performance requirements for clinical use in the EU. Manufactured by Ningbo FLO Optical under strict ISO 13485 quality management systems, this unit is certified by SGS Belgium NV (Notified Body 1639). It carries the CE mark, validating its status as a reliable active device for diagnosis. Our distribution partner in Poland ensures that every unit is rigorously tested for calibration accuracy before deployment, guaranteeing that the device performs on par with leading market alternatives for a fraction of the capital investment.
